Industrial Resin
SERIES-Z
SERIES-Z is a Zirconia resin compatible with Top-Down DLP 3D printers, boasting excellent properties such as strength, hardness, chemical stability, and biocompatibility. It is utilized in various fields such as medical devices, precision ceramic components, and insulation parts. With M.O.P's technical capabilities, consistent high-quality output is achievable even during prolonged printing sessions.
| Density (g/cm³) | 5.92 |
|---|---|
| Compressive strength (MPa) | 2000 - 2500 |
| Flexural strength (MPa) | 800 - 1000 |
| Hardness (Vickers HV0.5) | 14 |
Special Features
- Low electrical conductivity
- Low thermal conductivity
- Chemical stability
- Biocompatibility
SERIES-A
SERIES-A is a 99.9% pure Alumina resin compatible with Top-Down DLP 3D printers, known for its excellent heat resistance, chemical stability, durability, and low density. It finds applications in various fields such as aerospace, mechanical components, and semiconductor industries. With M.O.P's technical capabilities, consistent high-quality output is achievable even during prolonged printing sessions.
| Purity (%) | 99.9 |
|---|---|
| Density (g/㎤) | 3.71 |
| Flexural strength (MPa) | 350 - 400 |
| Color | Ivory |
Special Features
- High heat resistance
- High wear resistance
- High thermal conductivity
- Chemical stability
SERIES-X
M.O.P의 하이브리드 세라믹 레진은 높은 정밀도와 내열성을 특징으로 합니다. 플라스틱과 세라믹의 장점을 극대화하여 가볍지만 높은 기계적 물성을 가집니다. 고정밀, 고강도가 요구되는 산업용 정밀 부품에 활용 가능합니다.
| Tensile Strength(MPa) | 72.4 |
|---|---|
| Tensile Modulus(MPa) | 2,770 |
| Tensile Elongation(%) | 3.2 |
| Flexural Strength(MPa) | 114 |
| Flexural Modulus(MPa) | 4,870 |
| IZOD Impact(J/m) | 102 |
| HDT@0.45MPa(°C) | 232 |
| Hardness | 93 |
| CTE(60°C)(μm/m/°C) | 81.7 |
| Ceramic Content(%) | 20 |
Special Features
- 우수한 내열성
- 경량성
- 높은 정밀도
- 우수한 강도
COLOR LIQUID
COLOR LIQUID is a liquids compatible with zirconia, which is colored after sintering at high temperatures. It enables various colors for 3D printed outputs and can be used without concerns of discoloration or fading.
Color Charts
- White
- Black
- Metal
- Khaki
- Mint
- Brown
- Sand
- Lavender
- Pink
- Blue
Biocompatible Resin

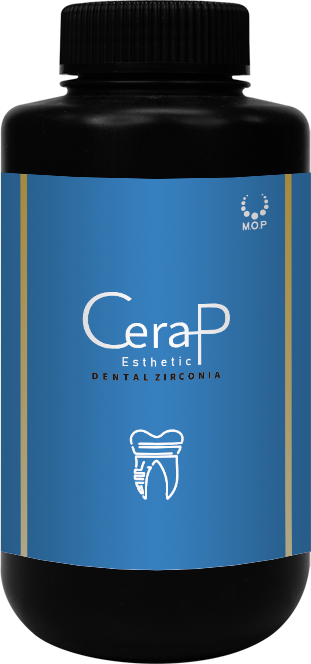

Cera-P
Cera-P is a zirconia resin compatible with Top-Down DLP 3D printers, approved by MFDS for use in medical devices such as artificial teeth, brackets, and inlays. Optimized for 3D printing, it allows for precise, custom-made dental prosthesis. Developed to closely resemble actual teeth colors, it offers three product lines: Esthetic, Natural, and White, enabling more realistic teeth.
| Types | Esthetic | Natural | White |
|---|---|---|---|
| Density (g/cm³) | 5.92 | ||
| Hardness (vickers HV0.5) | 14 | ||
| Flexural strength (MPa) | 720 | 720 | 1000 |
| Special features | B1, A1, B2, D2, A2, C1, C2 | D4, A3, D3, B3, A3.5, B4, C3, A4, C4 | |
Special Features
- High flexural strength
- High precision
- Low viscosity
- Biocompatibility
Clean:IK
Clean:IK is a hybrid ceramic resin compatible with conventional DLP 3D printers and is used for producing permanent dental prosthesis. Unlike the commercial dental resin used for the same purpose, it contains a high portion of surface-treated ceramic fillers, providing enhanced mechanical properties. Clean:IK does not require any additional sintering process, yet a high-quality dental prosthesis can be produced through simple post-processing after 3D printing. The key feature of this product is an anti-biofouling property: suppression of plaque formation, and the attachment of micro-organisms on the surface of the prosthesis for a long-term use, significantly contributing to oral hygiene.
| Flexural strength (MPa) | 130 |
|---|---|
| Flexural modulus (MPa) | 4,000 |
| Water absorption (µg/㎣) | 40 |
| Solubility | 0 |
| Inorganic filler content (%) | 50% by weight |
Special Features
- High conductivity
- High precision
- Low viscosity
- Biocompatibility
