CLAVISH™
CLAVISH™ is an organic titanium composite coating material based on nano titanium dioxide (TiO₂), optimized for high heat resistance and enhanced durability. Depending on the substrate, the curing temperature can be adjusted within a range of 120–800 °C, and a uniform thin film with a thickness of 50–500 nm can be formed depending on concentration and processing conditions. It provides excellent corrosion resistance, chemical resistance, acid resistance, and alkali resistance, effectively suppressing corrosion on metal surfaces while forming a stable protective layer even in high-temperature environments. In addition, its excellent electrical insulation properties help suppress leakage current and surface discharge, providing reliable substrate protection across various industrial environments.
Corrosion Resistance
Chemical Resistance
Acid Resistance
Alkali Resistance
Product Properties
Specification
Product Name T210
Component Organic Titanium Complex
Solid Content (wt%) 22.13
Solvent 1-Butanol
Solubility MeOH, PrOH, MEK, PGMEA, Hexane
Coating Properties
Curing Temperature 120℃ 500℃
Chemical Resistance (MEK)
Acid Resistance (3% Acetic Acid)
Alkali Resistance (5%NaOH)
Saltwater Immersion (3.5%NaCl)
Electrical Insulation
Corrosion Resistance (800℃, 2h/Air)
Heat Resistance (1100℃, 30min)
Applications

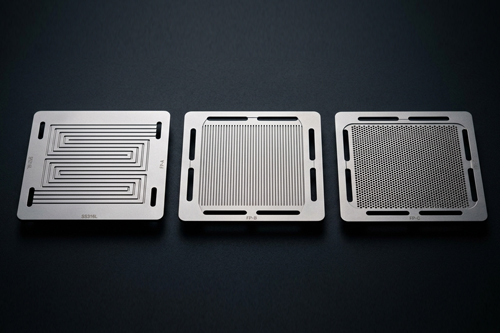

  • SOFC Interconnects SOFC Interconnects

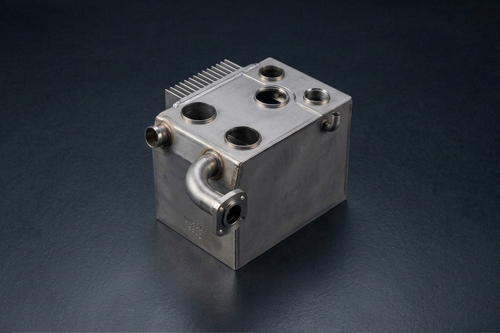

  • Heat Exchangers Heat Exchangers

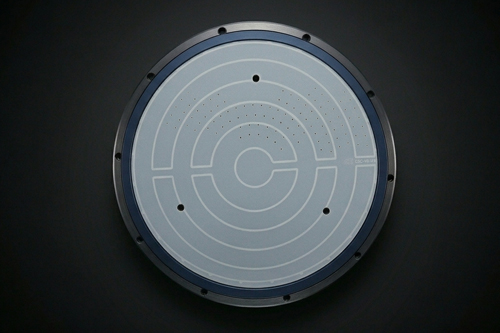

  • Electrostatic Chucks (ESC) Electrostatic Chucks (ESC)

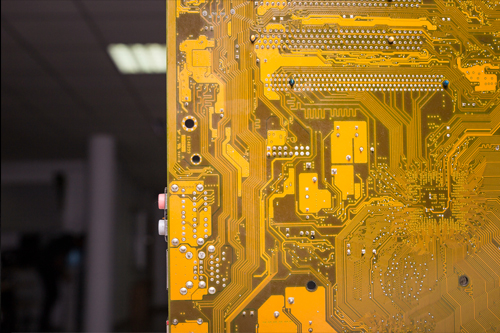

  • Semiconductor Chamber ComponentsSemiconductor Chamber
    Components
