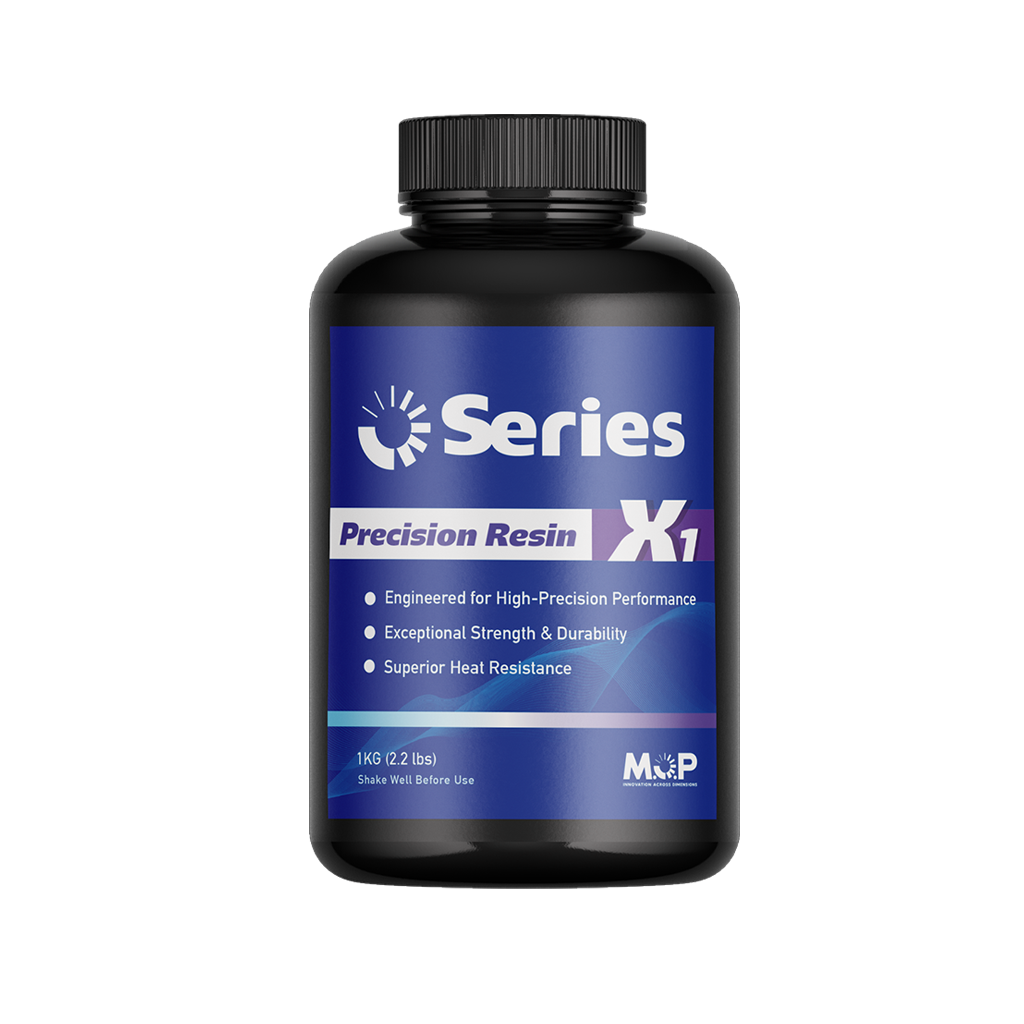

Series-X₁ (Precision)
Series-X₁ is an industrial-grade resin with high precision, strength, and heat resistance. It is suitable for advanced industries such as semiconductors, automotive, aerospace, and medical devices that require micron-level accuracy and dimensional stability under high temperatures and mechanical stress. The material is compatible with common 3D printing systems including SLA, DLP, and LCD printers.
- High Precision
- Lightweight
- Excellent Strength
- Heat Resistance
Product Properties
| Sintered Properties | |||
|---|---|---|---|
| Tensile Strength (MPa) | 84.4 | ASTM D638 | |
| Tensile Modulus (MPa) | 1,880 | ||
| Tensile Elongation (%) | 5.5 | ||
| Flexural Strength (MPa) | 131 | ISO 178 | |
| Flexural Modulus (MPa) | 3,580 | ||
| IZOD Impact (J/m) | 145 | ASTM D256 | |
| HDT@0.45MPa (°C) | 278 | ISO 75-2 | |
| Hardness (Shore D) | 92 | ISO 868 | |
| CTE (60°C) (μm/m/°C) | 74 | ASTM E831 | |
| Color | Black | ||

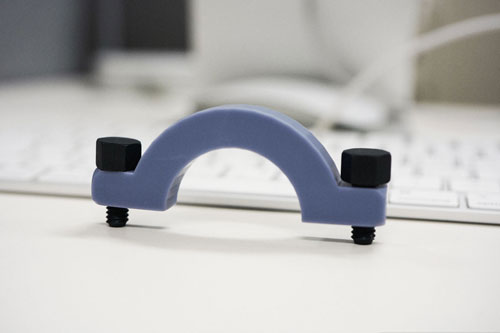

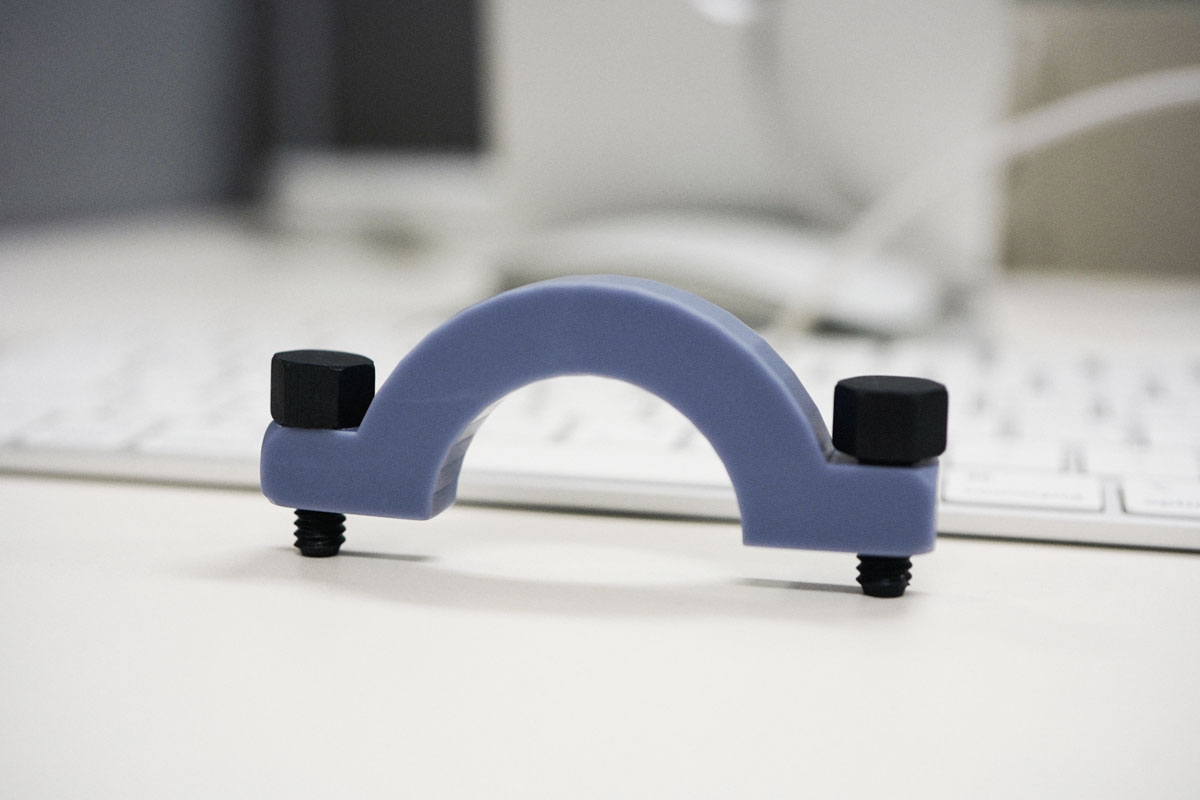

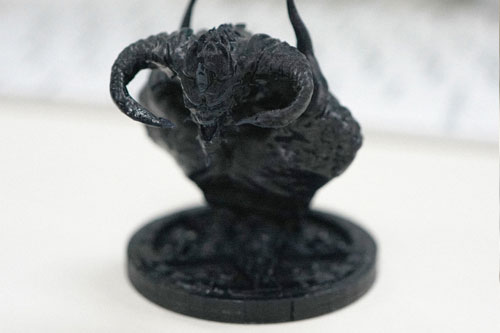

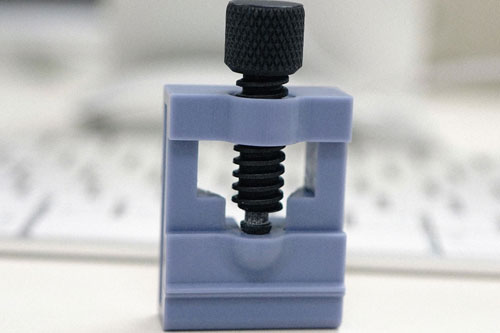

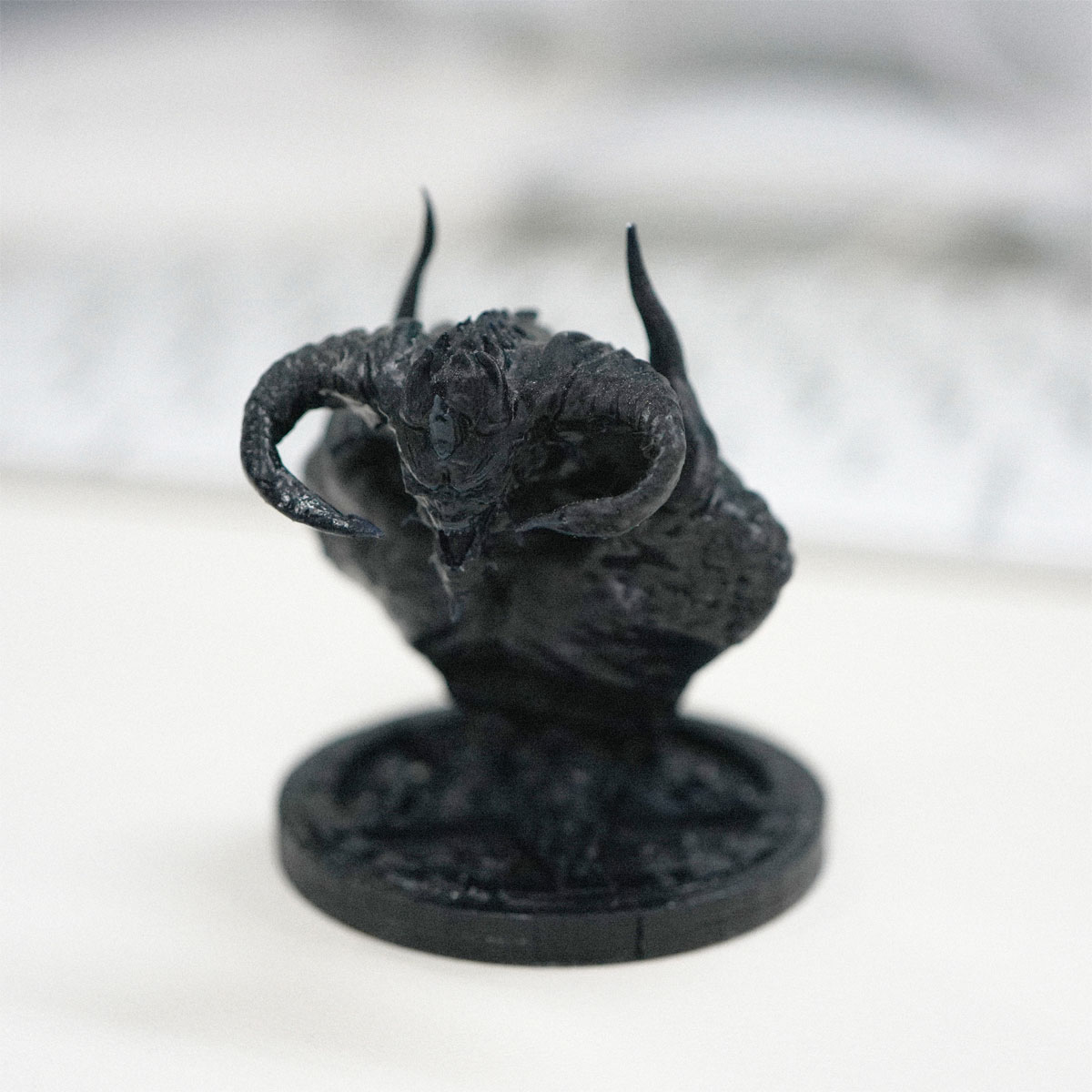

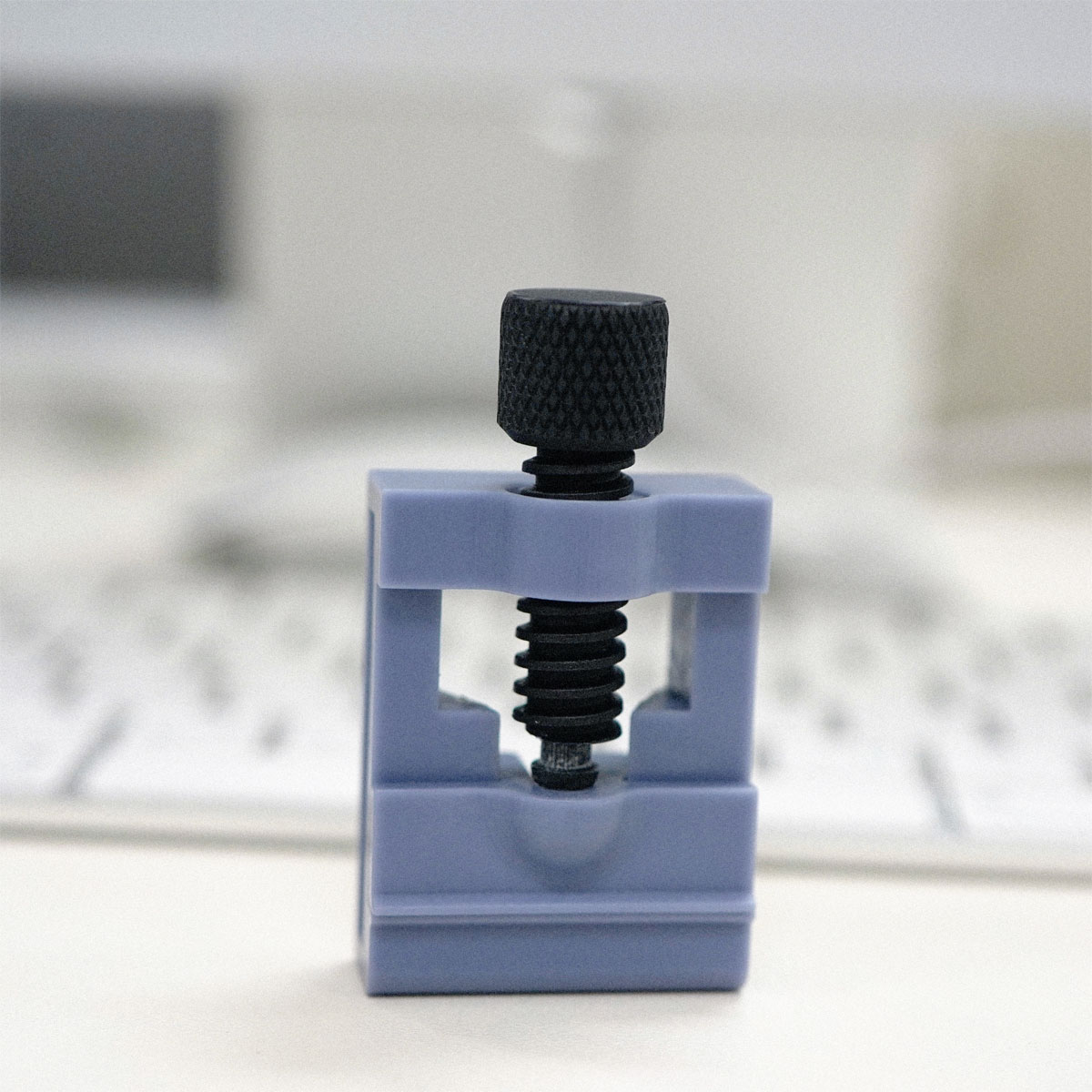

Samples
