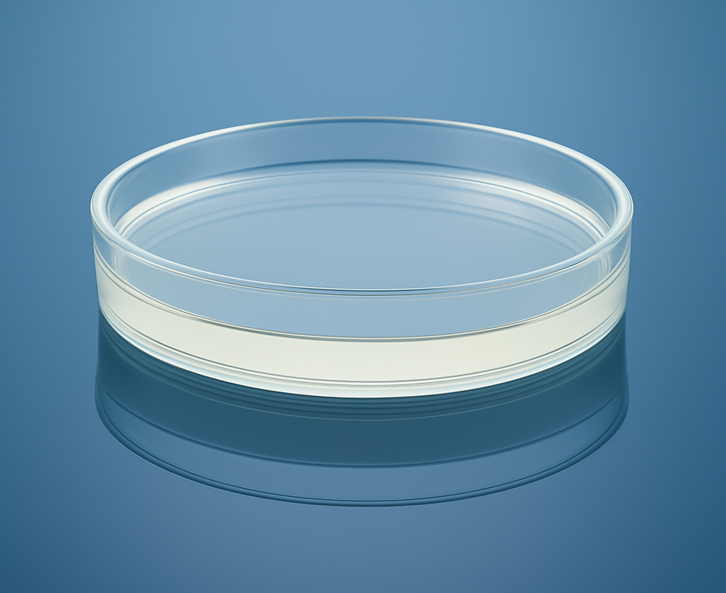

CLAVILUX™
CLAVILUX™ is an organic titanium complex optimized for high-refractive-index performance. It is a low-temperature curable material (60–150 °C) that allows precise control of the refractive index within the 1.6–1.9 range depending on curing conditions, while maintaining a high transmittance of 93–98%. With excellent miscibility in various solvents, it can be easily applied to existing manufacturing processes. Its superior film-forming capability and strong adhesion to substrates ensure a uniform and stable coating layer.
Features
- High Transparency
- Excellent Flexibility
- Outstanding Heat Resistance
Product Properties
| Product Name | T604 |
|---|---|
| Component | Organic Titanium Complex |
| Solid Content (wt%) | 22.13 |
| TiO₂ Content (wt%) | 6.47 |
| Solvent | 1-Butanol |
| Solubility | MeOH, PrOH, MEK, PGME, PGMEA, Hexane |
Coating Properties
| Test Solution | T604 Butanol (ｘ3 Dilution, TiO2 2.15wt%) | |
|---|---|---|
| Purpose | Primer | Thin Film |
| Refractive Index | 1.64 | 1.86 |
| Film Thickness (nm) | 170 | 100 |
| Curing Conditions | 150°C × 30min | 500°C × 60min |
| Transmittance (%) | 98 | 93 |
| Coating Method | Spin Coating | |
Applications
Optics
Solar Power
Display
Electronics and Semiconductors
